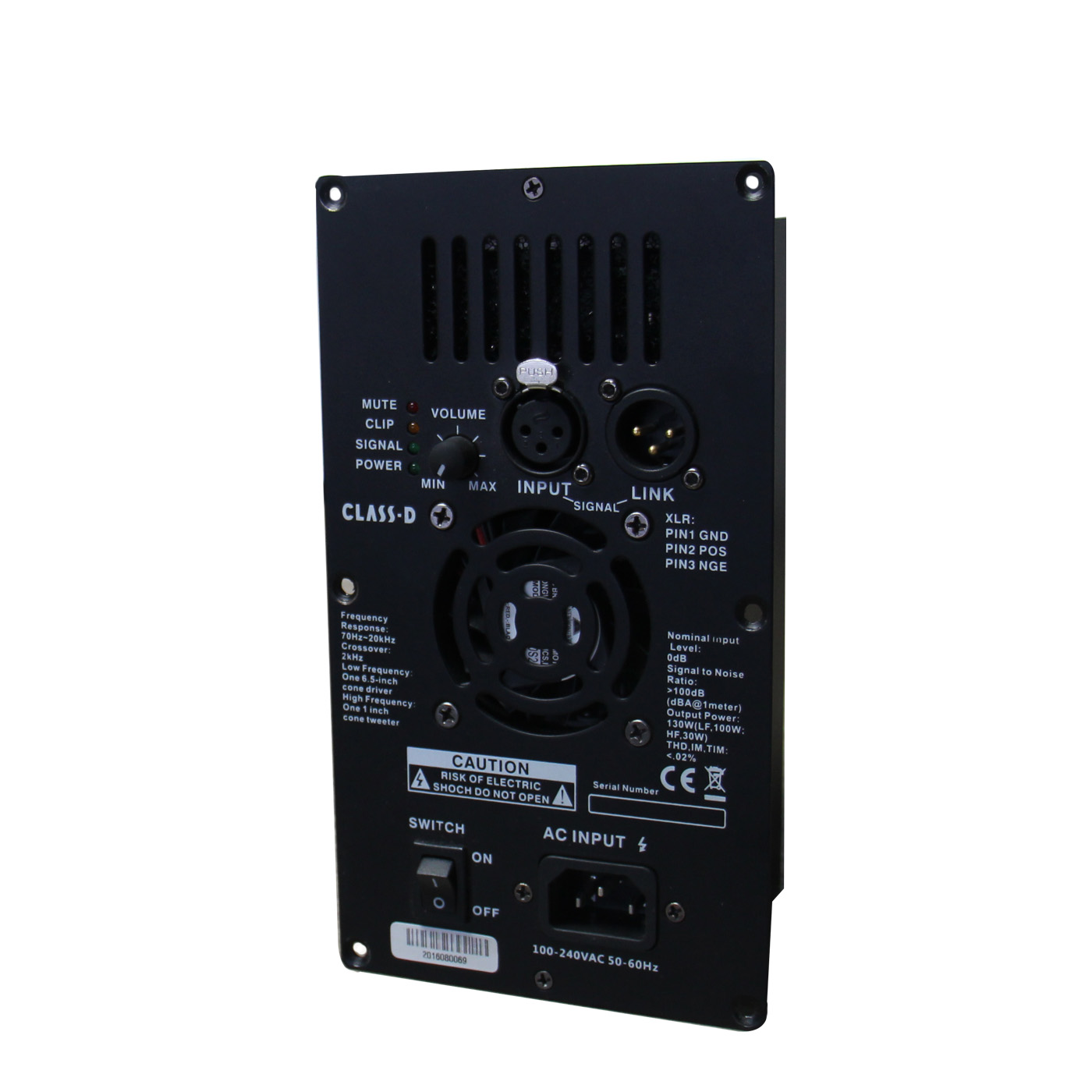

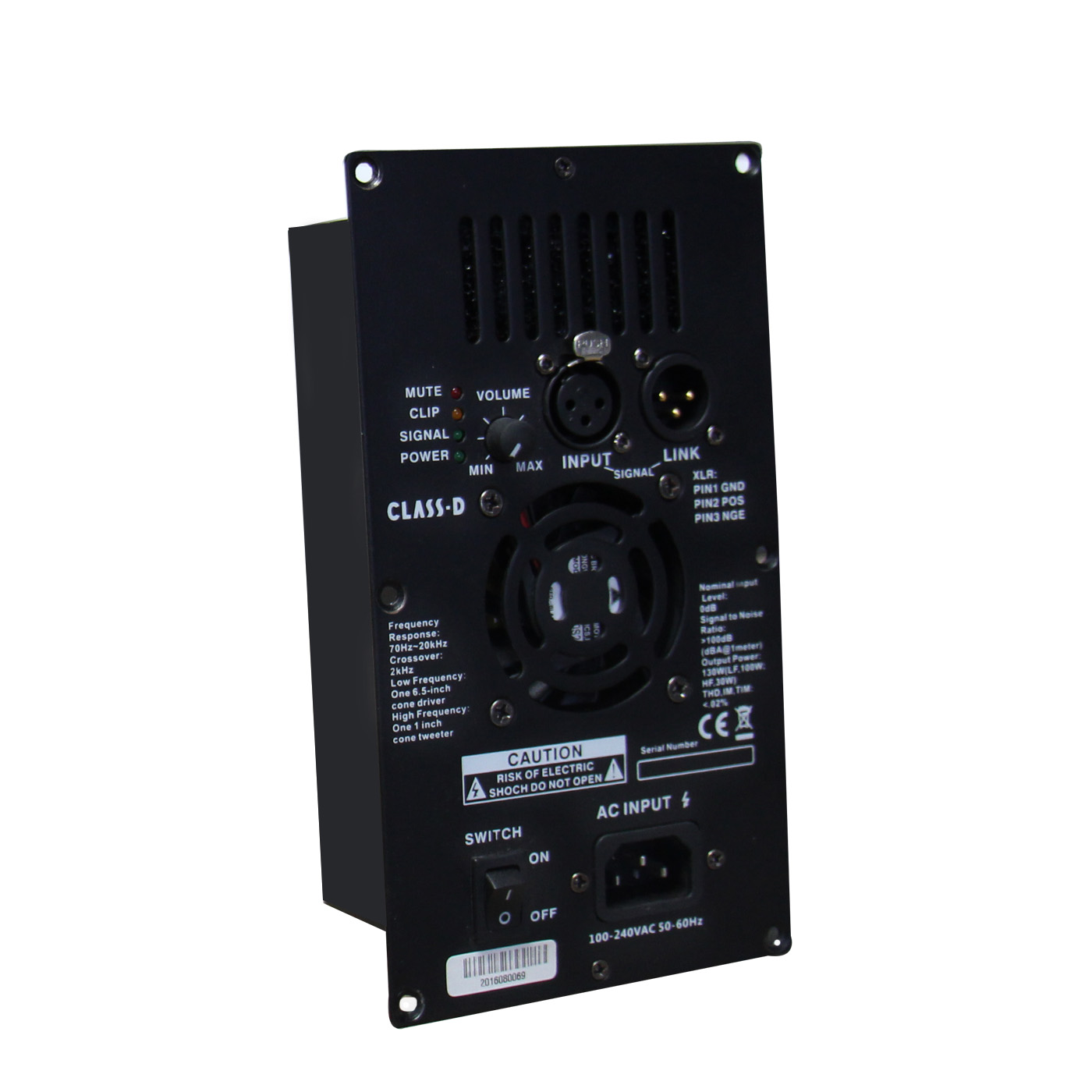

D1-150W Single Channel 150 Watts Class D Powered Module

Share to:

D1-150W Single Channel 150 Watts Class D Powered Module

1>. single channel Class-D mini plate amplifier

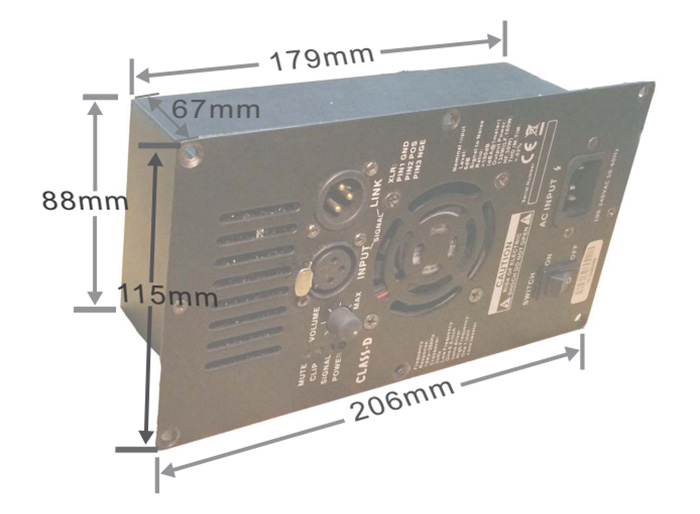

2>. Compact Installation dimension: L*W*D=206*115*67 mm
3>. Lightweight and easy install
4>. Perfect for passive full range speaker or public address systems cabinet box
5>. Stable on 4 ohms load.

Availability:

Quantity:



Inquire Add to Basket

Model:
D1-150W
Brand:
Sanway

Description

The D1-150W powered module is built for smaller speaker cabinet, usually for 8 inch home theater audio speaker, our other single channel amplifier modules includes D1-450D; D1-600D; D1-800D, they are usually mounted in 12 inch , 15 inch and 18 inch speaker box. With perfect protection ; high sound quality ; high efficiency, stable and reliable characteristics , this amplifier module is suitable for passive full range speaker or public address systems cabinet box.

Specification

Item	D1-150W
8Ω Power	1x150w
4Ω Power	1x200w
Frequency Response	20Hz-20KHz ±1dB
THD+N 1 KHz 1W 8Ω	<0.1 %
Channel Separation 1KHz	>80dB
Cl ass	D
Protection	Short,DCP,OVP,UVP,OCP,OTP
Operating Voltage	100V-240V
Input Sensitivity	1V
Input Impedance	20KΩ
Function	VOLUME
Dimensions(W×H×D)	206×115×67mm
Packing Dimension	230×140×100mm
Net Weight(kg)	0.9
Gross Weight( kg)	1.6
