D3-2CH
Sanway
Dual 8 inch Line Array
Key Feature
1>. D3 Series powered speaker module consists of class D amplifier board; switching power supply and DSP module.
2>. It is 1800W+1800W at 4 ohms 2 channels module
3>. This module is mounted an agile DSP module for versatile PA Systems Performance, you could manage this PA system via PC which connected with a USB or RS-485 cable.
4>. Compact installation dimension with powerful output
5>. D3-2CH class d subwoofer plate amplifier is perfect for high power double 15 inch or 18 inch subwoofer box .
Specification
| ITEM | D3-2CH |
| 8Ω Power | OUT1: 1500W + OUT2: 1500W |
| 4Ω Power | OUT1: 1800W + OUT2: 1800W |
| Frequency Response | 20Hz-20KHz ±1dB |
| THD+N 1KHz 1W 8Ω | <0.1% |
| Signal to Noise Ratio 1KHz | >100dB |
| Channel Separation 1KHz | >80dB |
| Class | D |
| Protection | Short,DCP,OVP,UVP,OCP,OTP |
| Operating Voltage | 110V Version:90V-135V / 220V Version 180V-265V |
| Input Sensitivity | 0.77V |
| Input Impedance | 20KΩ |
| DSP Fuction | MUTE,Polarity,Gain,Delay, Limiter,Mixer,EQ,XOver |
| DSP Control | USB and RS-485 |

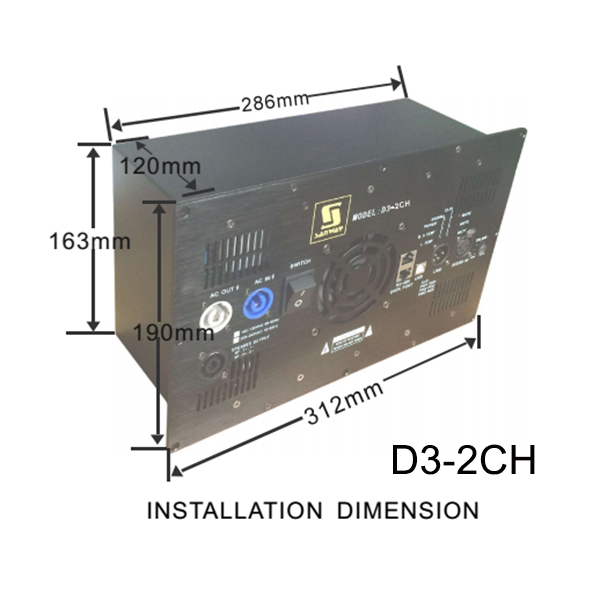

| Dimensions(W×H×D) | 312×190×120mm |
| Packing Dimension | 350×210×150mm |
| Net Weight(kg) | 4.9 |
| Gross Weight(kg) | 5.9 |
Feedback from customers:
Key Feature
1>. D3 Series powered speaker module consists of class D amplifier board; switching power supply and DSP module.
2>. It is 1800W+1800W at 4 ohms 2 channels module
3>. This module is mounted an agile DSP module for versatile PA Systems Performance, you could manage this PA system via PC which connected with a USB or RS-485 cable.
4>. Compact installation dimension with powerful output
5>. D3-2CH class d subwoofer plate amplifier is perfect for high power double 15 inch or 18 inch subwoofer box .
Specification
| ITEM | D3-2CH |
| 8Ω Power | OUT1: 1500W + OUT2: 1500W |
| 4Ω Power | OUT1: 1800W + OUT2: 1800W |
| Frequency Response | 20Hz-20KHz ±1dB |
| THD+N 1KHz 1W 8Ω | <0.1% |
| Signal to Noise Ratio 1KHz | >100dB |
| Channel Separation 1KHz | >80dB |
| Class | D |
| Protection | Short,DCP,OVP,UVP,OCP,OTP |
| Operating Voltage | 110V Version:90V-135V / 220V Version 180V-265V |
| Input Sensitivity | 0.77V |
| Input Impedance | 20KΩ |
| DSP Fuction | MUTE,Polarity,Gain,Delay, Limiter,Mixer,EQ,XOver |
| DSP Control | USB and RS-485 |
| Dimensions(W×H×D) | 312×190×120mm |
| Packing Dimension | 350×210×150mm |
| Net Weight(kg) | 4.9 |
| Gross Weight(kg) | 5.9 |
