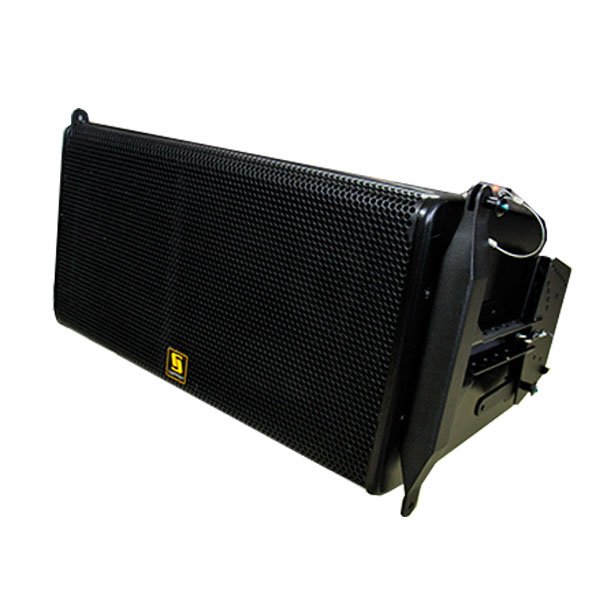

GEO S1210 12" High Cost Efficiency Loudspeaker

Name: GEO S1210 12" High Cost Efficiency Loudspeaker
Brand: Sanway
SKU: 42361867
Rating: 5.0 (83 reviews)

1. 2-way full range speaker ;
2. 12 inch woofer and one 3 inch driver ;
3. Cabinet is high-density birch plywood ;
4. narrow-Q (10°) device in single-source mode;
5. 4x GEO S1210 in parallel HF: 1000 to 1800W into 4Ω LF: 2000 to 3600W into 4Ω

Version:	Powered Passive
Availability:

Model:
GEO S1210
Brand:
Sanway
Type:
Single 12 inch Line Array
Version:
powered, passive

Description

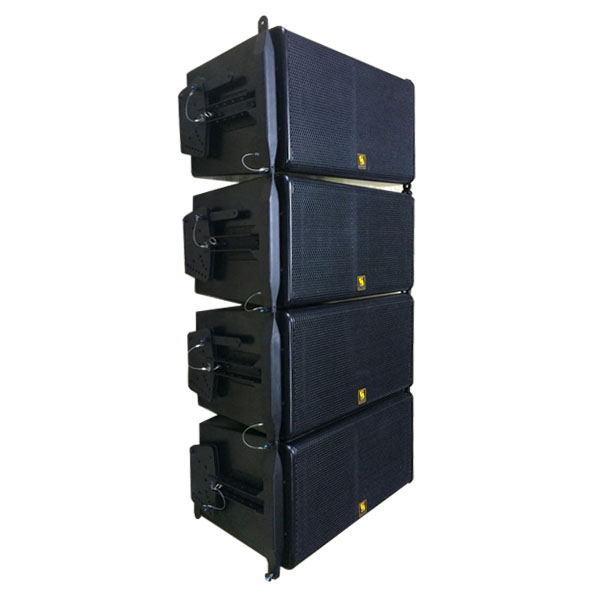

Compact 2-way GEO S1210 is a scalable highoutput loudspeaker . With a narrow Q value of the point sound source speaker, the use of patented HRW hyperbolic reflection wave source technology, can put many units GEO S1210 speakers into a line array. GEO S1210's beautiful and ergonomic design is for all the strong sound of the application, its design can be used for fixed installation and mobile performances, it is the high cost efficiency of the strong sound system.

Application

• Stadia/Arena/Auditorium Installations

• High Traffic Walkways and Public Waiting Areas

• Foreground Playback for Nightclubs and Discos

• Corporate AV and Presentation Systems

• Portable Entertainment and DJ Systems

• Small to Mid-Size Tour Systems

Specification

Model	GEO S1210 12 inch speaker box design

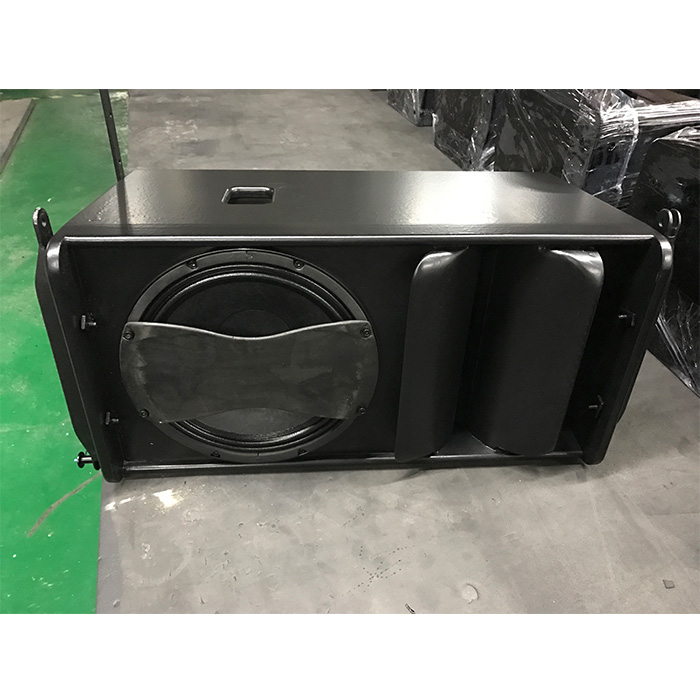

Drivers	HF: 1x 3” voice coil LF: 1x 12”neodymium driver
Frequency Response (±3 dB)	53 Hz - 19 kHz
Sensitivity (1w/1m)	97dB SPL
Nominal Impedance	16ohms
Power rated(rms)	750 watts
Peak Power handling	3000 watts
Usable range @-6dB	50Hz – 20kHz
Shape	10° Trapezoid
Powered Version	Sanway Customized Powered Module
Dimensions (Wx D x H)	344 x 675 x 378 mm
Enclosure Material	15mm plywood
Net weight	28kg / 33kg powered

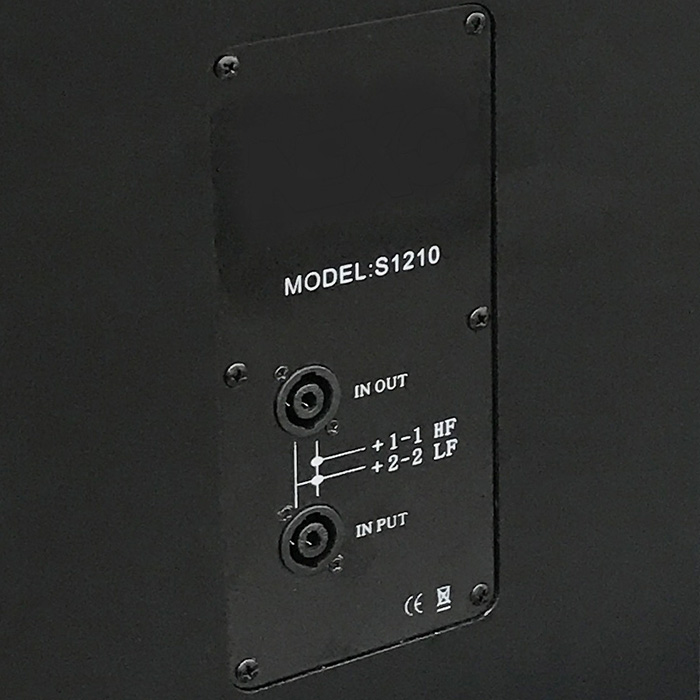

Input Connectors	Neutrik NL4MPX2
