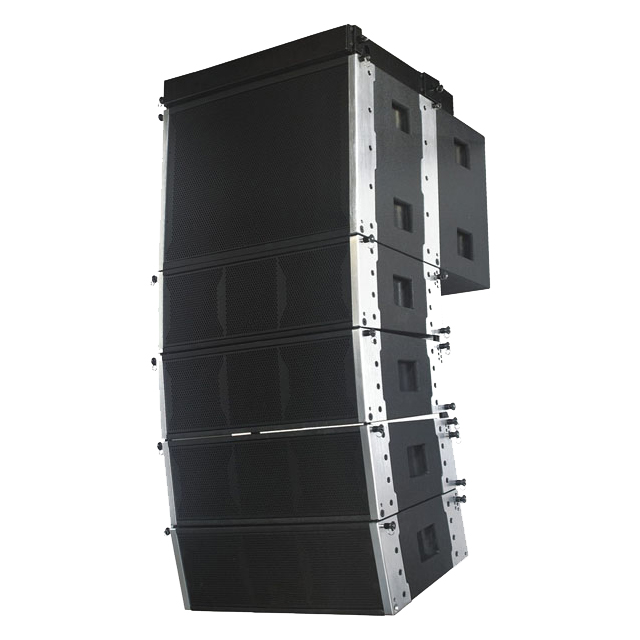

LA-208 Dual 8" High Effeciency Neodymium Power Mini Line Array

1>.2-way Bi-amp Line Array system
2>.Dual 8 inch Neodymium woofer, dual 2 inch Neodymium Tweeter.
3>.Supported with a full range of flying accessories. Proprietary rigging system.
4>.For portable or permanent installation.
Two version:
active passive

  • LA-208

  • Sanway

  • 2 x 8"

  • 2 x 2"

  • 16 ohms

  • 380W

  • 760W

  • 18mm high intensity plywood

  • 265 mm x 550 mm x 375 mm

  • 20kg

Description

The LA-208 is a small two way line array enclosure designed to bring line array performance benefits to a variety of small and medium scale applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres, indoor and outdoor venues. It is also suitable as a delay system for large scale outdoor sound reinforcement.
Following the constant directivity horn design philosophy, The LA-208 combines line array principles with innovative horn loading techniques to produce a next generation, small line array with maximum dynamic impact. Sanway recommends 4pcs LA-208 combination with 1pc LA-208B for extending low frequency.

Key Feature

1>.2-way Bi-amp Line Array system
2>.Dual 8 inch Neodymium woofer, dual 2 inch Neodymium Tweeter.
3>.Supported with a full range of flying accessories. Proprietary rigging system.
4>.For portable or permanent installation.
6>.Lightweight for easy touring or handling.

Applications

1>. Arenas
2>. Convention Centers
3>. Medium or large Ballrooms
4>. Perfect for corporate
5>. Theaters Music
6>. Club or Church
7>. Concert reinforcement

Specifications

Frequency Response (±3 dB)  65 Hz - 20 kHz
Sensitivity (1w/1m) 98 dB SPL
 Long-term SPL  126 dB
Maximum SPL 132 dB
 Crossover 2.5Khz
Nominal Impedance LF 16 ohms; HF 16 ohms
 Power rated(rms) LF 380 watts; HF 60 watts
Peak Power handling LF 760 watts; HF 120 watts
Dimensions (H x W x D)  265 mm x 550 mm x 375 mm
 Enclosure Material 18mm high intensity plywood
Surface Finished  Textured black paint
Grille Acoustic foam on perforated steel grille
Net weight 19.8 kg
Low Frequency Driver 2×8" high effeciency Neodymium
High Frequency Driver  2×2" high effeciency Neodymium
 Input Connectors Neutrik NL4MPX2
